Swing Check Valves Standard Gost |
|
|
 |
|
Swing Check Valves
 DN 150 (6“)...1000 (40“) mm,
PN 2,5 (25)... 8,0 (80) MPa (bar)
Body Material:
- ASTM: A556, AISI 1020, A350LF2
- DIN: C22, 13Mn6
|
Design features
| Design Features |
Benefits |
| Cast carbon or alloy steel valve body and disc |
Resistance to chemical and temperature effects of line medium. |
| Angled seats sealing surfaces |
Reliability and longer service life of products. |
| Corrosion-resistant over welding of valve internals. |
| Tightening flanges design for DN 150, 200, 300 |
High level of serviceability and maintainability. |
|

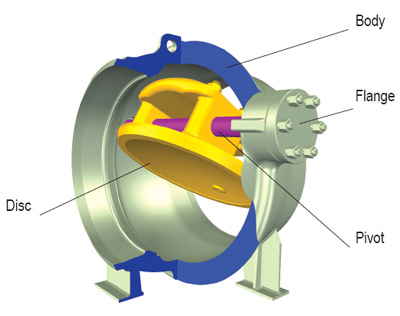

Parts and materials:
| Part name |
Material |
| DIN |
ASTM |
| Body |
C22, 13Mn6 |
A556, AISI 1020, A350LF2 |
| Disc |
C22, 13Mn6 |
A556, AISI 1020, A350LF2 |
| Gasket |
Paronite PON-A |
Paronite PON-B |
| Bolt |
C22, X20Cr13 |
A556, AISI 1020, A473, A580, AISI 420 |
| Clevis |
X20Cr13 |
A473, A580, AISI 420 |
| Pivot |
X20Cr13, X20CrNi 17.2 |
A473, A580, AISI 420, A176, A479, AISI 431 |
| Flange |
C22, 13Mn6 |
A556, AISI 1020, A350LF2 |
| Nut |
C35, 41CrS4 |
A915, AISI 1035, A331, AISI 5140 |
| Pin |
C35, 24CrMo5, 1.7218 |
A915, AISI 1035, A507, A519 |
| Body overlay |
Corrosion resistant over-welding |
| Disc overlay |
Corrosion resistant over-welding |
|
Application
Used as stop valves for pipelines transporting:
- water, vapor and other nonflammable, non-explosive and non-toxic media (Water);
- oil, petrochemical products, synthetic oil and other explosive flammable liquids (Oil).
|
Swing Check Valves With Hydraulic Impact Damper
 DN 700 (28“)...1000 (40“) mm,
PN 8,0 (80); 10,0 (100) MPa (bar)
Body Material:
- ASTM: A556, AISI 1020, A350LF2
- DIN: C22, 13Mn6
|
Design features
|
|
Design Features
|
Benefits
|
|
Cast carbon or alloy steel valve body and disc
|
Resistance to chemical and temperature effects of line medium.
|
|
Corrosion-resistant over welding of the valve body and disc.
|
Reliability and longer service life of products.
|
|
Hydro shock absorber (damper).
|
Smooth disc motion, protection from damage.
|
Parts and materials:
|
Part name
|
Material
|
|
DIN
|
ASTM
|
|
Body
|
C22, 13Mn6
|
A556, AISI 1020, A350LF2
|
|
Disc
|
C22, 13Mn6
|
A556, AISI 1020, A350LF2
|
|
Axle
|
X20Cr13
|
A473, A580, AISI 420
|
|
Flange
|
C22, 13Mn6
|
A556, AISI 1020, A350LF2
|
|
Nut
|
C35, 41CrS4
|
A915, AISI 1035, A331, AISI 5140
|
|
Pin
|
C35, 24CrMo5, 1.7218
|
A915, AISI 1035, A507, A519
|
|
Body overlay
|
Corrosion resistant over-welding
|
|
Disc overlay
|
Corrosion resistant over-welding
|
Application
Used as stop valves for pipelines transporting:
- oil, petrochemical products, synthetic oil and other explosive flammable liquids (Oil).
|
|
|
|
|
|
|
|
|
